Compare Our Products With Formostar Far Infrared system

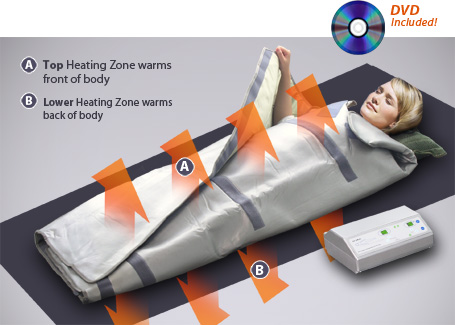

The Infrared Sauna Wrap PH-2B II is a low-voltage
FIR device, with 2 body heating zones simultaneously controlled,
suitable for professional use at a spa, weight loss center or beauty
salon. Sturdy and made for frequent operation. Provides a complete
sauna experience. The Infrared Sauna Wrap is also portable and easy
to clean, for travel or home use. The direct heat from the blanket
allows for gentle radiant relaxation of the muscles and controlled
INFRARED Sauna Wrap PH-2B II SYSTEM
COMPOSITION AND FUNCTIONS
The PH-2B II Infrared Sauna Wrap includes a
controller, a power cord, and has 2 connection leads
that connect the wrap to the control box (one for
each heating zone).
The PH-2B II Infrared Sauna Wrap is composed of a control box, a thermal blanket which enfolds the body in a full enclosure, a power cord and 2 connection leads.
Adjusts and controls the temperature
and timer settings of the thermal blanket.
Conducts heating to the body. Space Carbon
Fiber, covered by a layer of PU (polyurethane) fabric
Supplies power to the control box.
Connection Leads (2):
Connect the thermal blanket to the control box.

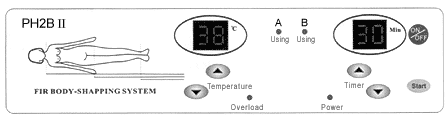

PH2BII PANEL DISPLAY AND
FUNCTIONS OF THE KEYS:
Switch the system 'ON' or 'OFF'
Temperature Key ()
Press to increase or press to decrease the temperature, 1° C for each time pressed.
Timer Key (
Press to increase or press to decrease the time, 5 minutes for each time pressed.
‘1’ and ‘2’ Display
Connection Indicator lights shine green when heating has started.
Overload indicator light shines when the power surpasses 300W, and the alarm buzzer will sound.
Press Start/Stop key to start or stop the device after setting the temperature and timer.
Place the Infrared SAUNA WRAP on a flat
surface, such as the bed or floor.
Wrap your body in the blanket. If a massage or body oil is used, then it is recommended to first wrap the body in a plastic film or sheet to protect the thermal blanket.
Put the control box on a flat surface such as a table and insert the plug into the main power socket.
Connect the leads labeled ‘1’ and ‘2’ between the control box and the thermal blanket. Connect lead ‘1’ to jack ‘1’ and lead ‘2’ to jack ‘2’, otherwise the heating system will not work.
Turn the main power switch on at the rear of the control box. The red ‘Power’ indicator on the control panel will light. The device has not started working yet.
Press the ‘ON/OFF’ key to start setting the temperature and the timer.
Press ‘Timer ’ to set the working time. For each press, the time will increase or decrease by 5 minutes. The default time is 40 minutes.
Press ‘Temperature ’ to set the working temperature. For each press, the temperature will increase or decrease by 1°Centigrade. Set the temperature to your specific requirements. The default temperature is 42°C.
Press ‘Start/Stop’ key. The green indicators ‘1’ and ‘2’ will light, showing that heating has started.
When the heating timer counts down to ‘0’, a signal will sound three times and the digital timer will display ‘0’ showing that heating has finished.
After using the Infrared Sauna Wrap, pull the plug out from power source.
If at any time you need to stop the session, just press the ‘Start/Stop’ key. When the green indicators go out, the system has stopped working.
Wipe the sweat from the surface of the thermal blanket with a wet towel and dry it by laying it flat on a bed or table for more than 1 hour.
Fold the blanket and store it in a dry and cool place.
Other Suggested Use:
When the room temperature is lower than 20 °C, you may preheat the blanket for 10 minutes prior to use.
It is suggested that you are well hydrated by drinking a glass of water prior to using.
INFRARED Sauna Wrap PH-2B II
60Hz / 220V ~240V 50Hz
Made of Nylon,
covered by a layer of PU (polyurethane) fabric, with heating
elements of Space Carbon Fiber
connections controlled simultaneously)
30°C ~ 60°C
Separate Heating Zone
180 x 92 cm / 70" x 36 1/4"
These Infrared Heat Devices are not medical products.
Not intended to diagnose, treat, cure or prevent any disease. If you are uncertain whether you can use any of these products, please consult your physician before using it. The
information and statements made are for
education purposes and are not intended to
replace the advice of your family doctor.
