The Venus is being billed as
being potent as the Melody. It has replaced the popular
Jupiter Microlite and has all the
features that anyone would ever need in an above counter water
ionizer. Ease of use and exceptional performance come with the
latest touch screen technology at an amazing price.
While similar in size, shape, and weight
the Jupiter Venus has been upgraded in several areas.
This makes the Venus the best value and most contemporary
water ionizer now available.
Venus Installation Videos
What Comes With Your New Venus Water Ionizer
Chamber (Water Cell)
Jupiter Science has used a proprietary matting between the Venus cell electrodes. With any water ionizer, it is essential that this material allow water to pass during ionization. What can happen, however, is that, unless there is an automatic cleaning cycle, very hard water will leave deposits on this material and eventually lower its transfer efficiency. The new proprietary matting used in the Venus water cell is extremely resistant to mineral deposits. Lime, iron, and other minerals are "sloughed off" enabling better ionization for a long period of time.
The inner structure of the Venus water cell also enables a much better acid from alkaline water separation. This enhanced segregation between alkaline and acid water results in more efficient ionization as well as better isolation of any remaining chlorine or fluoride.
This combination of efficient draining, improved matting, and revised inner structure enables the Venus to operate very efficiently on only one clean cycle of 10 seconds per every 20 liters.

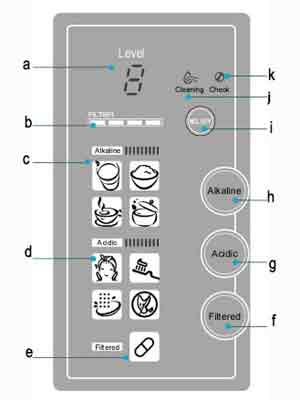

User Controls: The Venus controls have been designed with the Western kitchen in mind.
The new control panel is membrane sealed making it easy to clean. A gentle touch on the buttons is all that is needed to change any setting.
Quality Level Shows the different level of acid or
alkaline b - Filter Life Indicator Gives an estimate of filter life when last bar turns red it is time to order a
new filter c - Alkaline Water Indicator -
illuminates when alkaline water is selected d - Acid Water Indicator - illuminates
when acid water is selected. A tune will always
play when acid is selected or when Venus is in
clean mode e - Filtered Water Indicator
illuminates when filtered water is selected.
Filtered is clean but neither more acidic or alkaline. The water
is not ionized because the electrolysis plates are not charged
with electricity. f - Filtered Water Button - Press this button for filtered water
to come out the flexible drinking water hose g - Acidic Water Button - Press this button for acidic water to
come out the flexible drinking water hose h -
Alkaline Water Button - Press this button for alkaline water
to come out the flexible drinking water hose i - Volume Button - Turns the sounds on and off. Also
volume level can be adjusted j -
Self Cleaning Indicator - Lights up when unit is self cleaning
- auto clean for 10 seconds every 20 liters k - When this lights up unit needs to be
Flow Control Knob This special feature has been, until now, only available
on much more expensive ionizers. This enables you to control
the flow of water easily on your ionizer which in turn
affects the strength of the alkaline water and -ORP. The
slower the water flow the more time the water has to be
altered by the ionization process. However, you will find
that in almost all cases there will not often be a reason
why you would need to slow the flow down due to the
exception strength of the Venus's ionization chamber. The
control knob though will prove very useful in helping to
fine tune your preferred pH level so that you get the exact
same pH level every time you use your Venus.

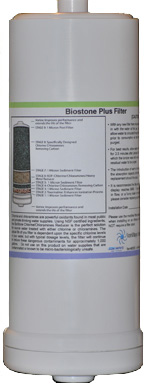

Biostone Filter The Venus comes with the same .1M Biostone filter that is
available in other top Jupiter models. This filter is very
effective at helping to remove many water contaminants and will
give a good 1000 gallons of filtered water. You also have the
option of purchasing the Venus with a .01M Biostone - the finest
domestic filter available. Jupiter has made replacing the
biostone filter so much easier with the Venus. One simply opens
the filter compartment door, pushes the filter down on its
spring loaded pedestal, and pulls the filter out. New filter
installation is literally a "SNAP".
Voltage Regulator This special feature allows for exception user control as
you can now reduce the voltage if your water is very hard or
increase the voltage if your water is very soft. In the USA
there are places like southern California and Texas where there
is a lot of extra calcium in the water and this water is called
hard. Because a high level of minerals (or TDS) will produce a
higher than average pH you may wish to reduce the voltage so
that your acid and alkaline settings show a good range of
choices. On the other hand in places like Seattle the water
lacks minerals and is called soft. By increasing the voltage in
these areas you can get a high alkaline pH as well as a good
Product Mfr No.
120V, 60Hz \
13" x 9.75" x
0.7 - 5kgf/cm
40 ~ 86F
Tap - water -
open and - close
Max 3 L/min (alkaline+acidic
Easy to replace
Estimated filter life
is variable (in ANY filter) depending on a variety
of factors. With municipally treated water and
normal usage, we estimate the following: one user =
12-15 months, two users = 10-12 months, a family of
four = 6-9 months.
Filter Life Indicator
LED Filter Life
activated Carbon and bio ceramic stone, calcium
Tourmaline space fibre ultra fine (optional)
Scale Guard Inserts drop right into your ionizer's mineral port,
eliminating in-line installation. The inserts are easy to use. Two
inserts per pack. For more information click on
Jupiter Scale Cleaning
