Quick Filter Comparison Chart

New AF-9000 Replacement Filters	High Performance AF-9000HP	Premium Performance AF-9000PP	Ultra Performance AF-9000UP
Carbon Type	Highest Grade Coconut Shell Carbon Block	Highest Grade Coconut Shell Carbon Block	Highest Grade Coconut Shell Carbon Block
Micron Rating	5 Micron	2 Micron	0.5 Micron
Chlorine taste and odor reduction
High VOCs (household chemicals, pesticides) reduction
High TOCs (herbicides, detergents, fertilizers, industrial chemicals) reduction
98% Heavy Metals (lead, mercury, nickel, etc) reduction
99.95% Cyst, Cryptosporidium, Giardia, reduction
Filter Capacity	3,000 gallons	3,000 gallons	3,000 gallons

These cartridge filters work in all the following alkaline water ionizers from
Toyo, Enagic (Kangen), or Impart Group's IE series water ionizers

Impart Group (IE Series)
IE-900	IE-500	IE-300

International Shipping Information
	HIGH Performance Cartridge Filter AF-9000HP
	• 5 micron rating • High capacity chlorine and odor reduction • High chemical absorptive capacity • High VOC and TOC reduction • Made in the USA. This is definitely a better value than the standard filter sold by Enagic for $90.00. It has a much better quality carbon media.
		$85.00

International Shipping Information
	PREMIUM Performance (LEAD & MERCURY) Removal Cartridge Filter AF-9000PP
	• 2 micron rating • High capacity chlorine and odor reduction • High chemical absorptive capacity • High VOC and TOC reduction • 98 reduction of lead and mercury heavy metals. • Made in the USA. This filter may require you to have a pre-filter installed In addition to having a much better quality carbon media this filter has KDF and media to remove not only lead but mercury as well.
		$115.00

International Shipping Information
	ULTRA Performance  Cartridge Filter AF-9000PP
	• 0.5 micron rating • High capacity chlorine and odor reduction • High chemical absorptive capacity • High VOC and TOC reduction • 98% reduction of lead and mercury heavy metals • 99.95% Cyst, Cryptosporidium, Giardia, reduction • Made in the USA. This filter may require you to have a pre-filter installed In addition to having a much better quality carbon media this filter has KDF and media to remove not only lead but mercury as well. Enagic does not have a filter in this category which can remove bacteria. Caution: Because this filter is so tightly packed with filtration media, it will clog faster than the others unless you are using a double housing pre-filter with a 5 micron and a 1 micron filter on board.	ULTRA Filter
		$135.00
		Double Filter
		System
		$179.95

International Shipping Information
	Electrolysis CLEANING Cartridge Filter AF-9000CC
	Simply use the cleaning cartridge once every 3-6 months to keep your ionizer at optimum performance or more frequently depending on your source water quality. This filter is a special blessing for anyone with an older water ionizer such as the Pure Porte II. It represents an effective way to clean the inside of your water ionizer. However sometimes your system might still need to be professionally cleaned. If your IE-900 Microwater Ionizer is not making alkaline water after using one or two cleaning cartridges, or your machine is clogged to the point where no water is flowing out of it, then your machine needs to be professionally opened an cleaned. The cost of covers the cleaning, inspection, testing and return shipping of your unit (except if you live in Hawaii or Alaska). You might want to consult with us to help you make a decision. It can resolve many problems this is why it is the first step we take when resolving most problems. There may be other things wrong with your machine, but before we do anything else we will inform you of what those charges would be. The initial charge is $75.00. When your machine is completed in the professional cleaning service, we will notify you and then send you a shipping charge. You might want to consult with us to help you make a decision.	CLEANING Cartridge
		$30.00
		Professional Cleaning
		$125.00

Cleaning Cartridge Instructions



Clean the unit every 3~6 months, especially:

1. If you find small white particles mixed in with the KANGAN water.

2. When the pH level fails to vary in accordance with the unit’s setting, as measured by pH indicator liquid.

3. When KANGAN water comes out sparingly, stops, or when drops of white liquid appear after using the unit.



Caution: Be certain to shut off the faucet and turn off the unit before beginning cleaning. Be certain to unplug the unit before beginning. Failure to do so could result in serious damage.

Please turn OFF a power supply and cleaning it.

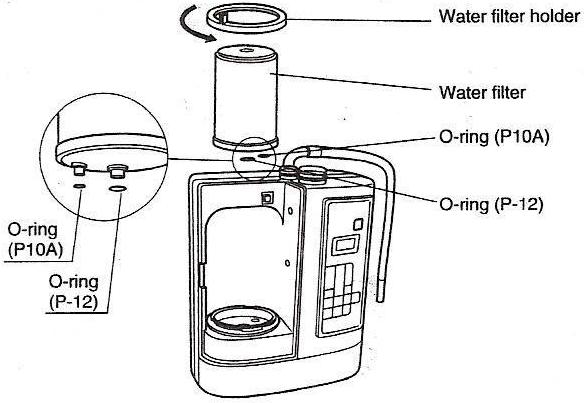

1. Remove the main unit’s water filter cover, unscrew the water filter holder, and remove the water filter

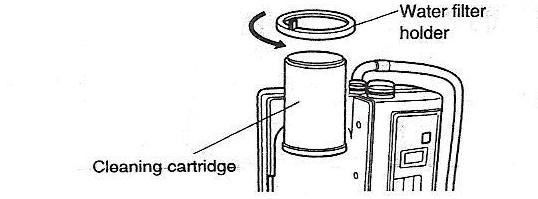

2. Insert the cleaning cartridge and secure with the water filter holder.

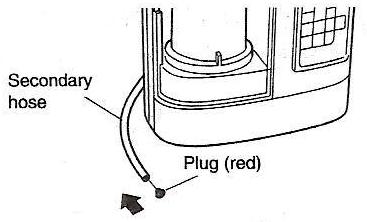

3. Plug the end of the grey (exit) hose with the red stopper.

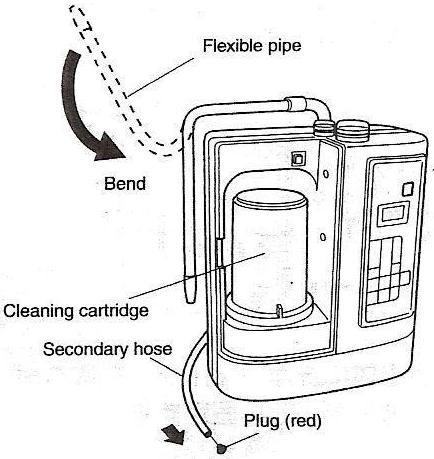

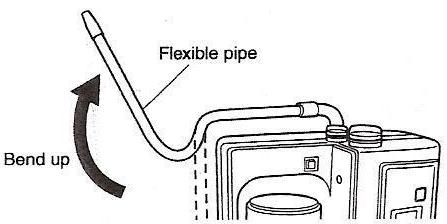

4. Bend the white flexible pipe up so that it is higher than the main unit.

5. Turn on just enough water so that it drips from the end of the white flexible pipe. After running for about one minute, turn off the water and let the unit sit for approximately one hour.

6. Return white flexible pipe to its original position and unstop the grey hose by removing the red stopper.

7. Turn the water on and let run for 5-10 minutes.

8. Turn off the water and in the same order as (1) (2), replace the cleaning cartridge with the water filter and run water for 1-3 minutes.

9. Replace the water filter cover, plug the unit back in, and cleaning is finished.

10. After cleaning, there is a chance that some calcium could appear in the water. In such a case, please discard that water.

The citric acid being used in this cartridge is a common food additive, and poses no health risks.

Caution: The cleaning cartridge can only be used once. A new cleaning cartridge must be used once. A new cleaning cartridge must be used each time cleaning is conducted.
